Day One Milk from $29,999 · final scope confirmed by Crystal Creek

Target one-day commissioning on a fully pre-prepared site

D1 Day One Dairy By Crystal Creek Book a call

Factory-built dairy infrastructure · by Crystal Creek

Prepared here.
Producing there.

Day One Dairy arrives as a configured, factory-tested production platform—with a disciplined target to commission in one day when the receiving site, utilities, approvals and operators are ready.

From $29,999Day One Milk starting price*
12 weeksTarget build lead time
1 dayTarget commissioning when site-ready
Local firstTrain, operate, maintain, grow

*Base Day One Milk module. Final equipment, capacity, site work, freight, taxes, commissioning and local requirements are quoted after a project call.

One brand. A complete deployment pathway.

Start with milk.
Add what the market needs.

Day One Dairy is the umbrella. Each product name describes a distinct capability, while “by Crystal Creek” keeps engineering, commissioning and support attached to the manufacturer behind the system.

Every configured system can includeDay One Connected

Local control with Crystal Creek diagnosis and approved support from anywhere.

See connected operations

The case for Day One Dairy

Food aid meets a moment. Local capability changes the next decade.

Day One Dairy is conceived for NGOs, foundations, governments and local operators who want a durable production asset—not a short-lived intervention. The objective is practical: process closer to the producer, build skills around a repeatable system and create a pathway toward locally sustained operations.

Impact depends on program design, local governance, market access, utilities, training and maintenance. Day One Dairy provides the production platform and implementation framework; it does not claim outcomes without local evidence.

01

NGOs + foundations

A tangible program asset with a defined handover, training and measurement framework.

02

Government partners

A configurable platform for regional food-processing, cold-chain and workforce initiatives.

03

Local operators

A clear physical workflow designed around maintainability, safe routines and business continuity.

04

Small farms

A route to retain more value from milk without starting with a conventional plant build.

The core product

Day One Milk first.
Creamery next.

Both units travel as closed, production-only shipping-container modules. Standard cargo doors support access and transport; a personnel door and small high-level windows serve the operating environment. There is no sales hatch and no direct retail from the containers.

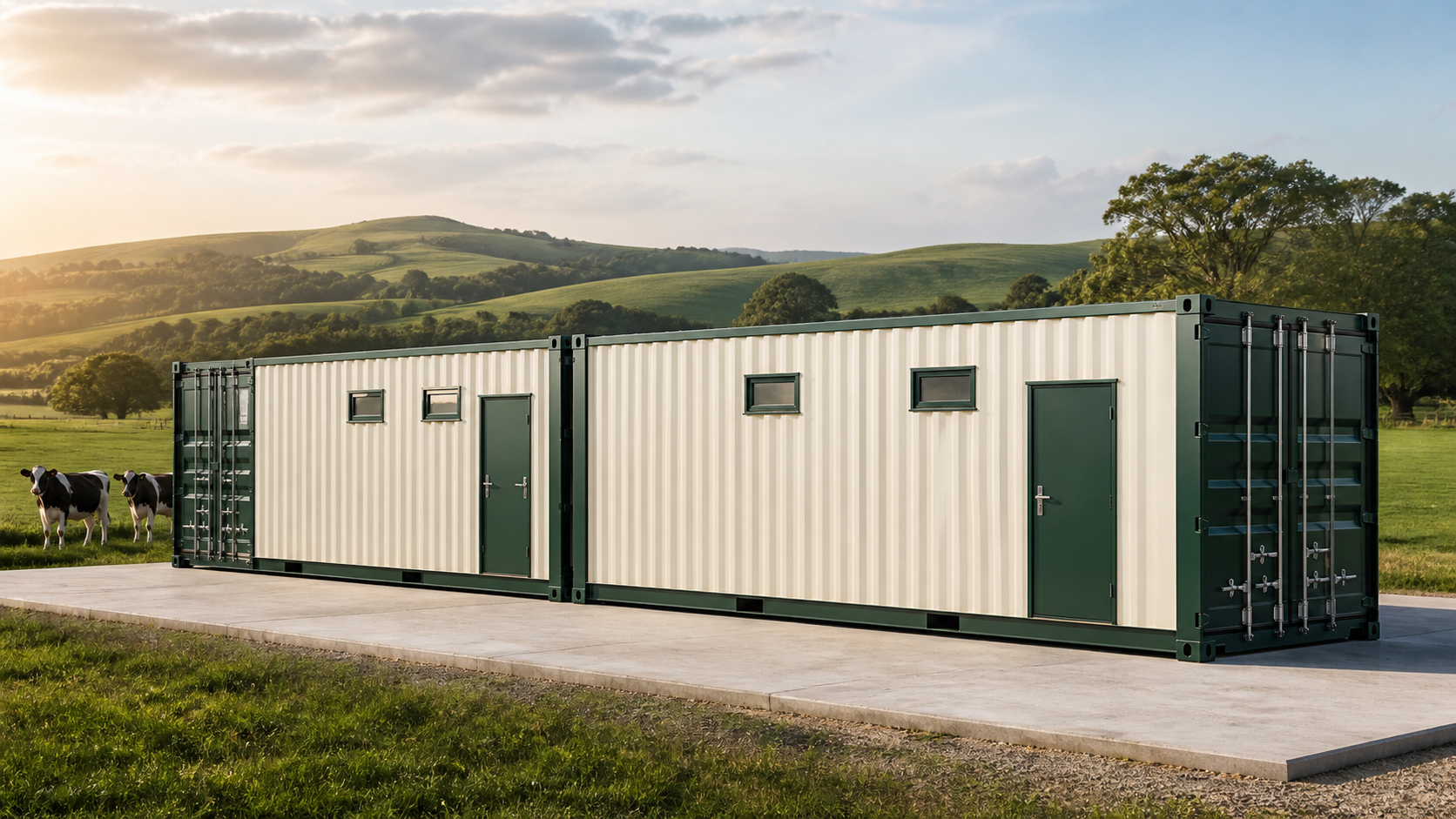

Two Day One Dairy production modules with small high-level windows on a prepared farm site
Closed for transport Two modules. One production line.
01

Day One Milk

Control the critical first steps.

Receive, pasteurise, chill, hold and clean down inside a disciplined food-grade workflow.

02

Day One Creamery

Create a flexible product line.

Configure cream, butter, yogurt and cheese processes, then fill, pack and move into cold storage.

Product architecture

Open the shell. Follow the value.

Every finished unit is closed and transport-ready. The cutaway reveals the engineered workflow inside—without turning the exterior into a storefront.

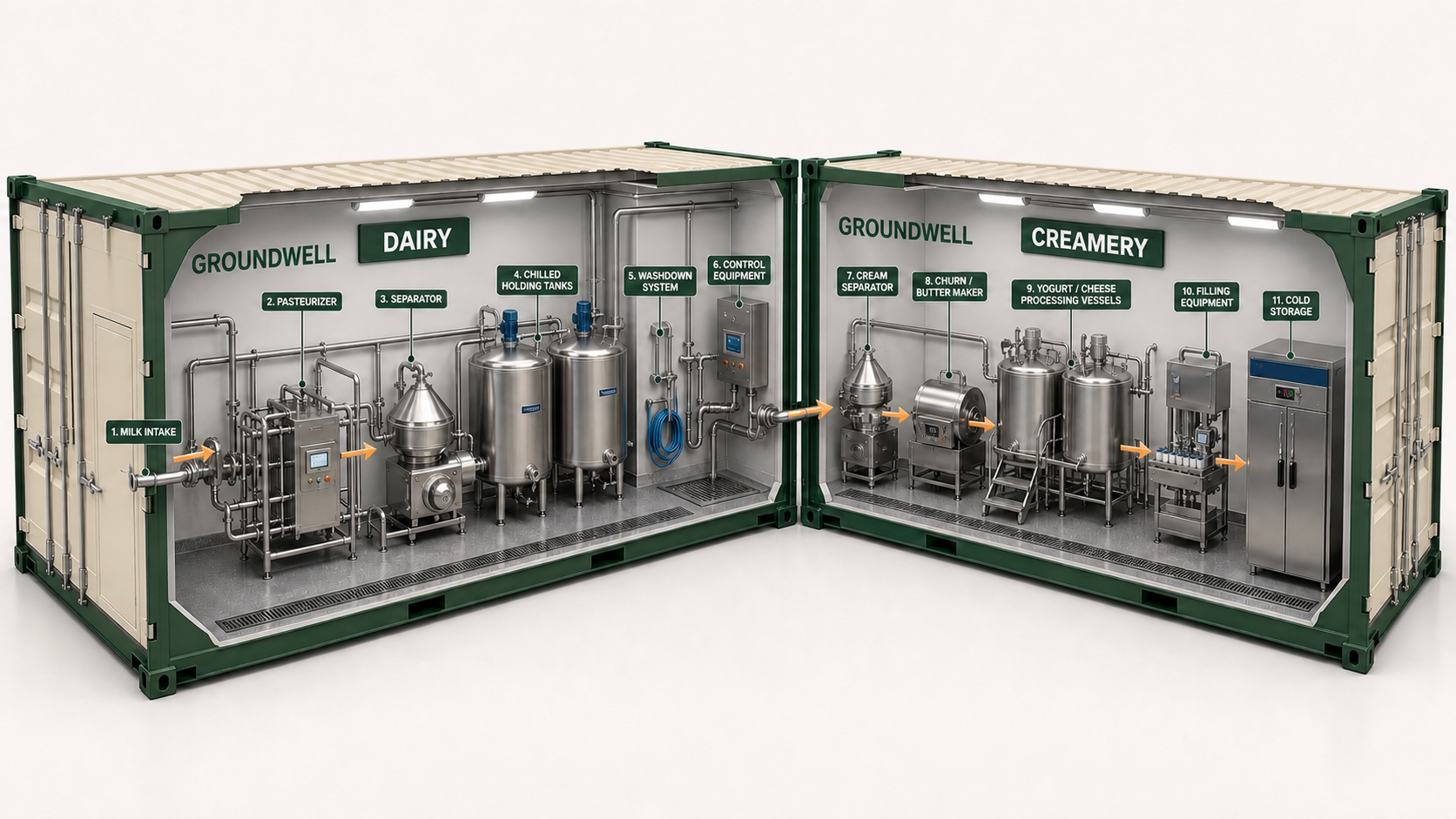

Cutaway showing the Day One Milk and Creamery production modules Day One Milk → Day One Creamery

System 01

Milk in. Safe, chilled product out.

The Dairy module controls the critical first steps: receiving, pasteurisation, chilled holding, sanitation and the hand-off to Creamery.

  1. 01Receive
  2. 02Pasteurise
  3. 03Chill + hold
  4. 04Clean down

Equipment, throughput and approval requirements are engineered for the receiving site.

Field-intake option · Day One Milk

Ships closed.
Opens into a covered milking bay.

The processing environment stays sealed. A recessed steel roof wing on each long side travels latched against the module, then raises over a configurable external stall bank and gated funnel-entry race at the receiving site.

Engineered for the receiving site

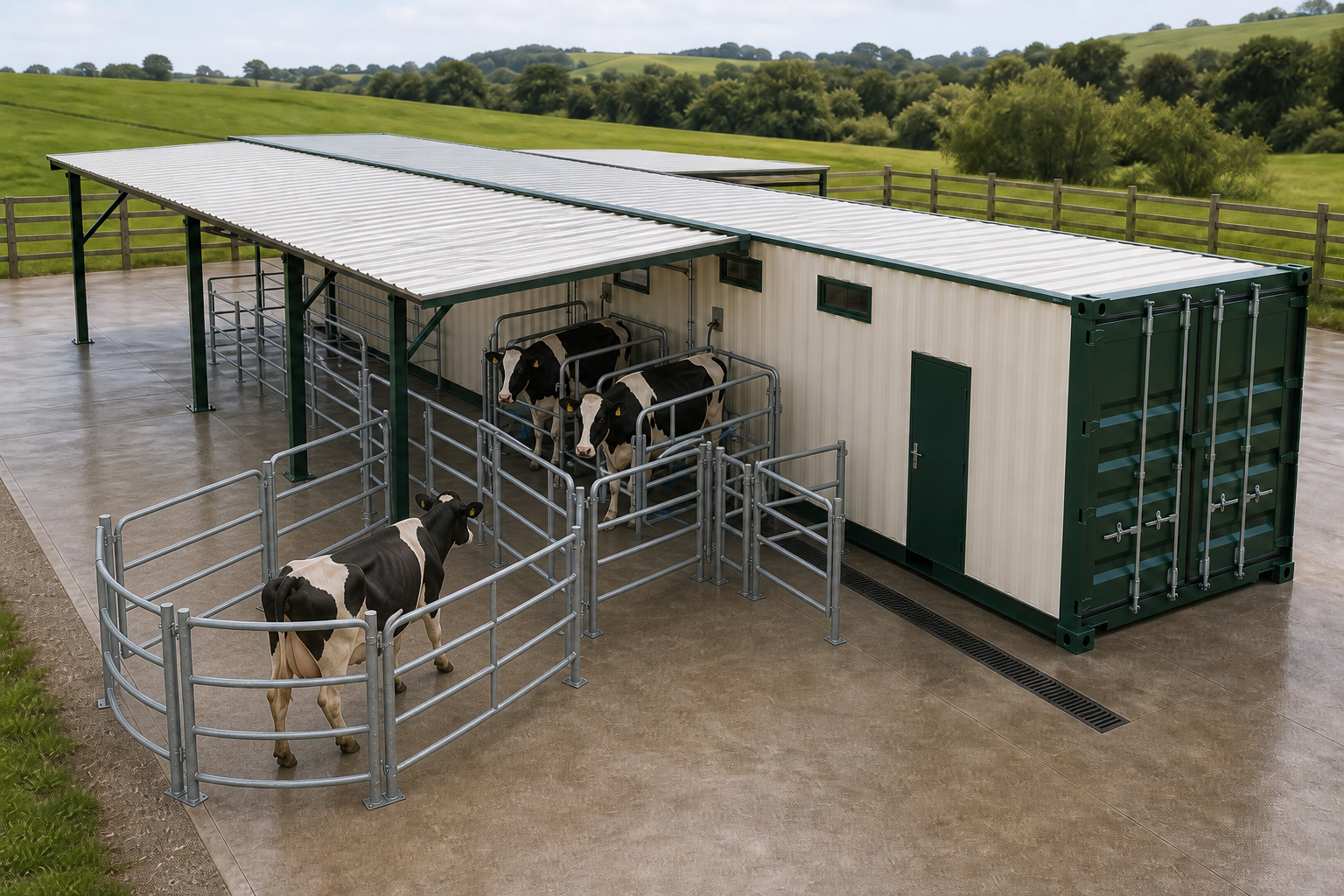

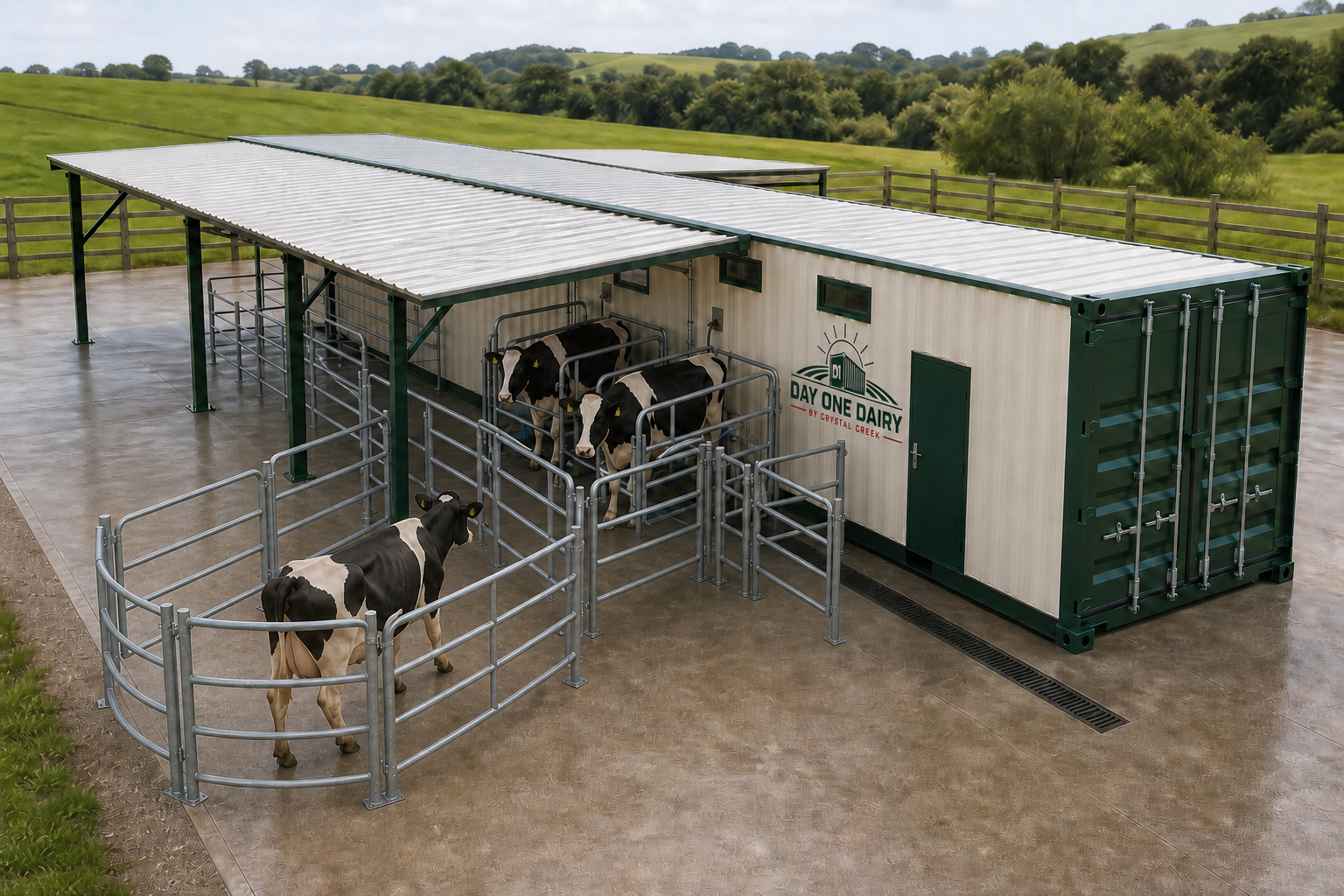

Standard-height Day One Milk module with two raised steel roof wings, two complete cows facing outward in separate exterior stalls, and a third cow entering through a continuous gated funnel race
Funnel-based animal flow · cows remain outside the production module Standard-height 40 ft module · never high-cube
01
Roof wing

One weather-shedding steel panel deploys from each long side over the stall zone.

02
Post + brace

Swing-down posts meet prepared anchor plates; locking pins and diagonal braces resist movement.

03
Sealed boundary

The insulated Dairy wall never opens. Milk crosses through dedicated sanitary side connections.

04
Funnel entry

A gated race narrows cows to single-file and turns one animal toward the next open stall.

05
Clear entry

The working bay sits behind the personnel door so access and emergency egress remain unobstructed.

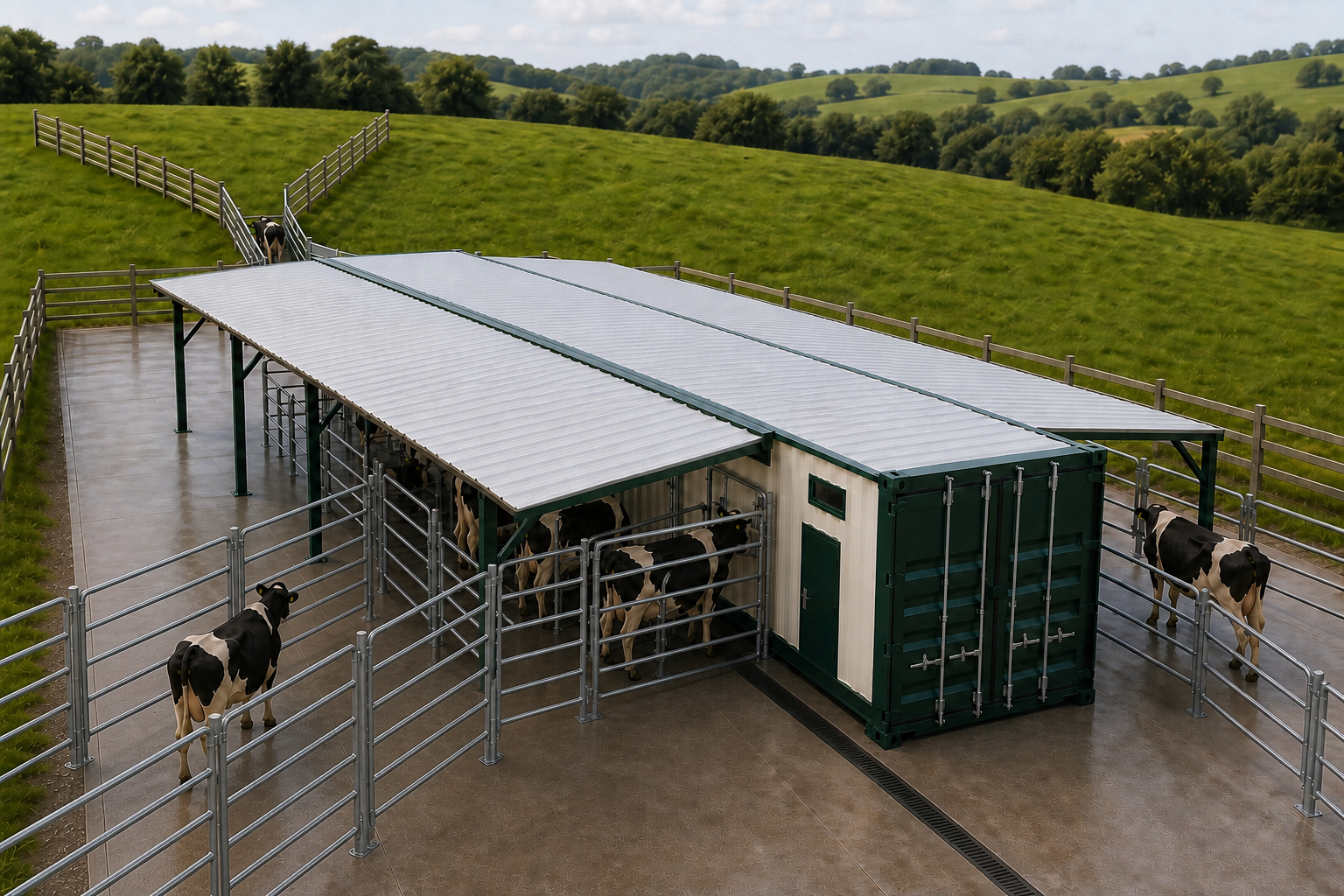

Day One Milk field-intake layout with one standard-height container, two connected roof wings, enclosed milking stalls and separated cattle lanes that keep the personnel door clear
Single-module field-intake layoutConnected wings · segregated cattle flow

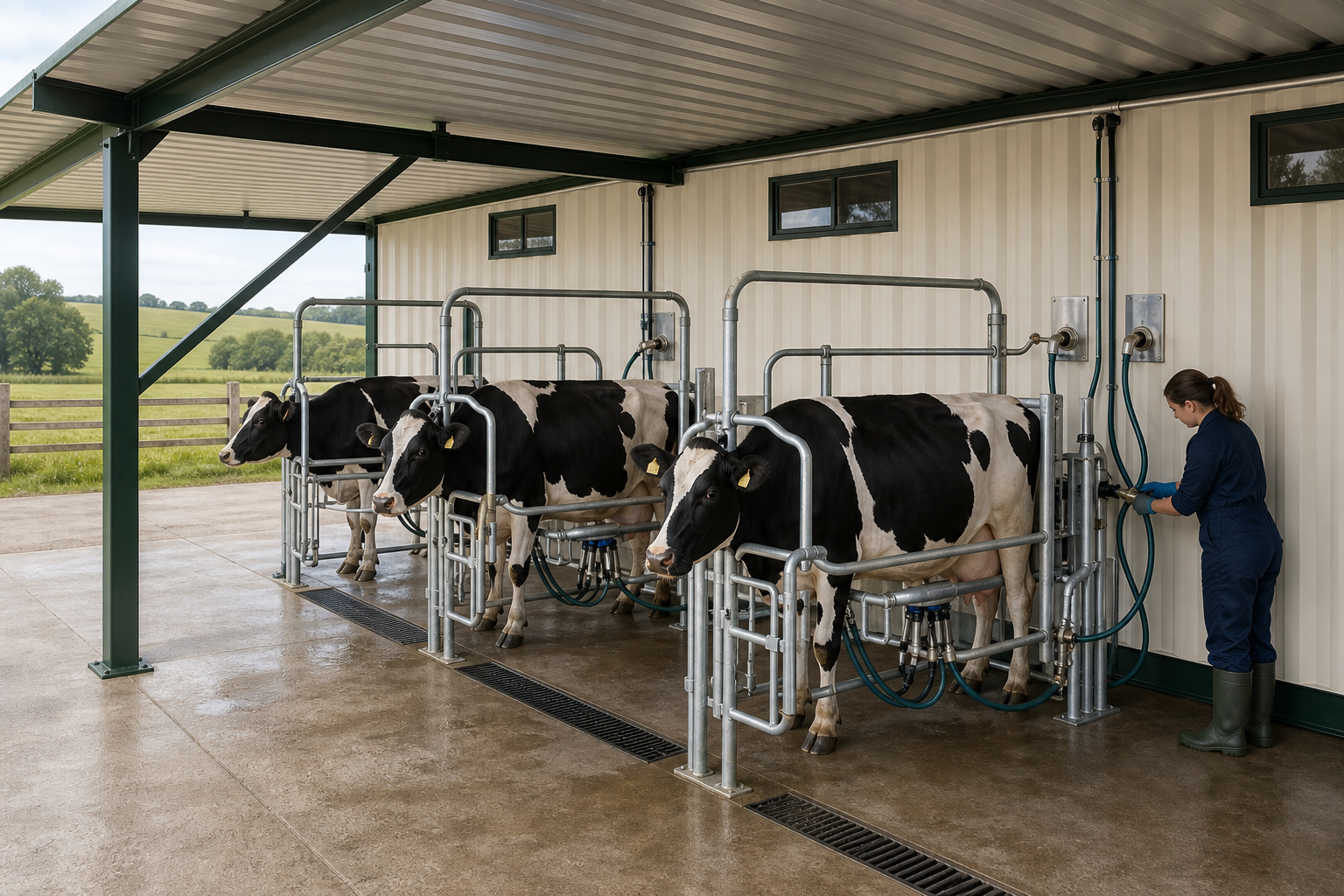

Three dairy cows standing in separate steel herringbone milking stalls beneath a deployed Day One Milk roof wing
Three-stall configuration Each cow separated · heads outward · clean-side operator access

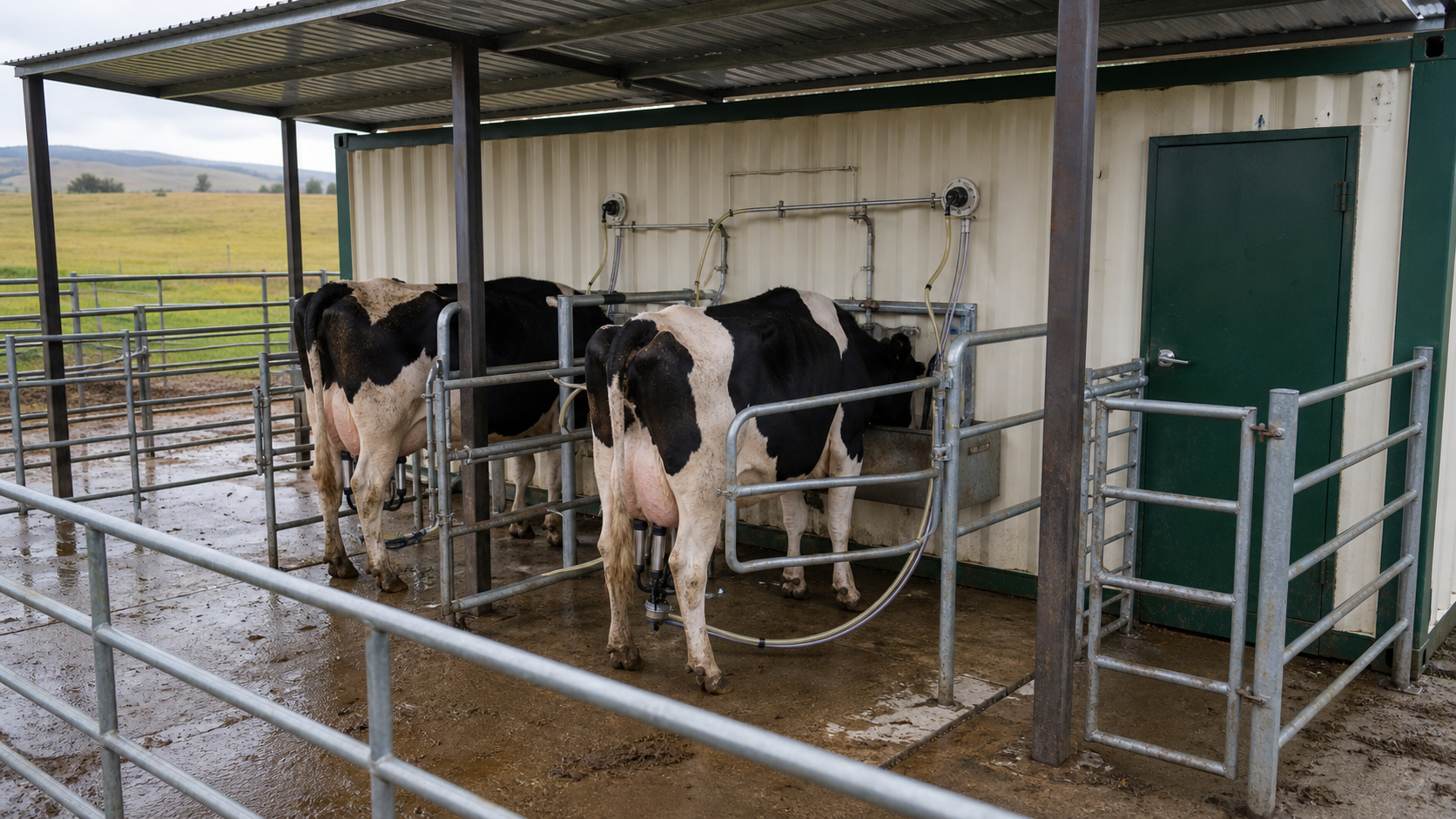

Under the wing

Two or three cows. Each in a defined stall.

The useful version is more than cattle standing beneath a roof. A compact herringbone bank gives every cow a head gate, side divider and rump rail while preserving a protected operator lane beside the sealed Day One Milk wall.

Animal position
Heads face the open edge; hindquarters remain accessible from the clean-side lane.
Milk path
Short food-grade hoses run from each cluster through its own sealed sanitary wall port.
Entry + release
Gated flow keeps animals separated and allows a calm, repeatable loading sequence.
Washdown
A nonslip slab and grated drain move cleanup away from the production boundary.

Final stall count must match cow size, animal-welfare requirements, operator staffing, vacuum capacity, milk cooling and the receiving site. Two or three stalls is a configuration choice—not a universal claim.

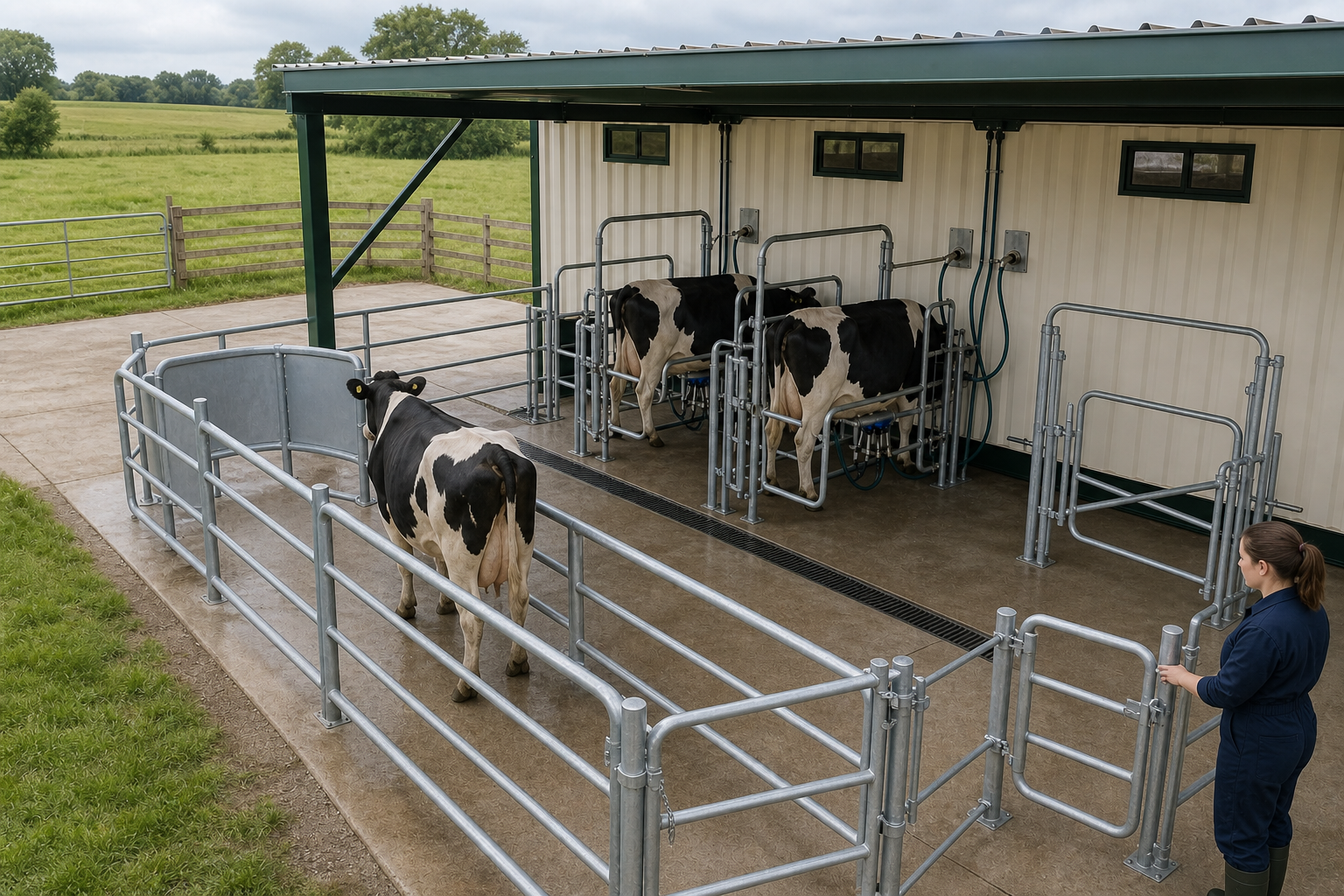

A third dairy cow walking through a gated single-file entry race toward an empty milking stall while two cows stand in occupied stalls beneath the Day One Milk roof wing
Feed-in sequence · two cows loaded, third cow entering Incoming and outgoing cattle use separate paths

Feed-in channel · animal entry race

One clear move into the stalls.

The feed-in channel is a gated cattle race—not a food trough. It runs along the canopy’s open edge, keeps cows single-file and guides each animal through a quiet turn into the next available angled stall.

  1. 01
    Connect the holding areaA farm gate or portable holding pen meets the outer end of the race.
  2. 02
    Enter single-fileParallel rails and a crowd gate create one obvious forward path.
  3. 03
    Control the turnAn anti-back gate prevents reversing while the cow turns toward the open stall.
  4. 04
    Load one positionThe operator closes the divider only after the cow is settled in its defined space.
  5. 05
    Release forwardA separate exit lane carries milked cows away without crossing incoming animals.

The rail pack can be designed to bolt together on the prepared slab and travel dismantled inside the module. Final race width, turning radius, gate swing, escape clearances, floor slope and cattle-handling details require local animal-welfare and structural review.

Four-stage field deployment

From transport envelope to working bay.

The exact hinge, lift assist, post, anchorage and transport-envelope details require structural engineering for the destination’s wind, rain, snow and seismic conditions.

01 · Transport

Ship inside the envelope.

Both roof wings lock vertically against recessed side frames. Gates, milking hardware and loose braces travel secured.

02 · Raise

Lift each wing.

A controlled mechanical assist raises the panels from their top hinges while the installation zone stays clear.

03 · Lock

Post, pin and anchor.

Outer posts swing down to verified slab points. Baseplates, locking pins and diagonal braces complete the structure.

04 · Verify

Connect, clean and milk.

Install the selected two- or three-stall bank, verify sanitary connections and drainage, then release the bay to trained operators.

The non-negotiable boundary

Cows, mud and weather stay outside. The Dairy module remains a closed, cleanable food-production environment at every stage.

Discuss field intake on a project call

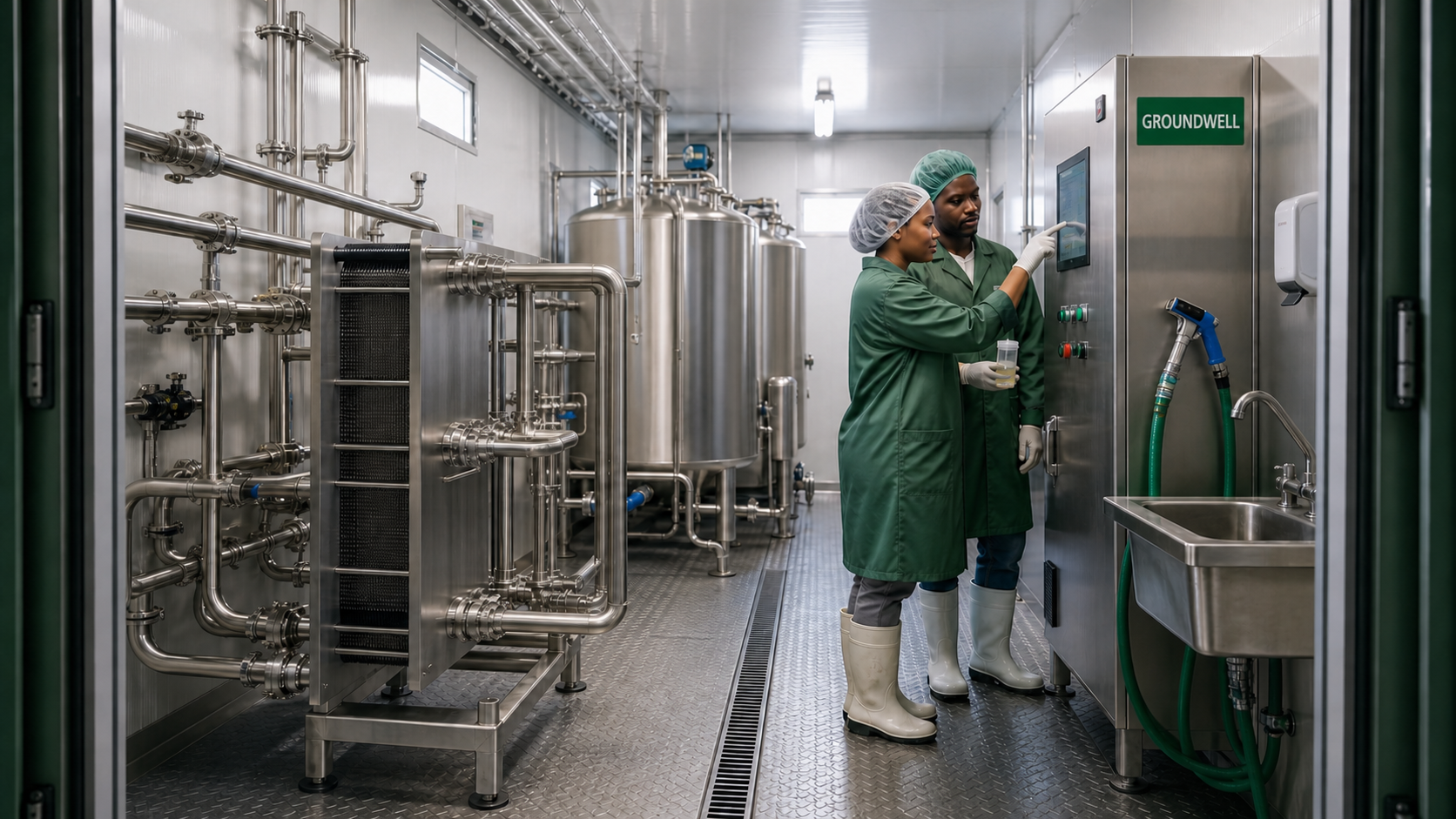

Two trained operators working inside the Day One Milk production module Inside Day One Milk · operator controls

Inside the operating model

Built to be run, cleaned and understood.

A system only creates value when operators can use it confidently every day. Day One Dairy prioritises clear zones, sanitary transfer, visible controls, washdown logic, maintainable equipment and training that stays with the local team.

01Operator workflow

Define who receives, processes, verifies, cleans and signs off each batch.

02Sanitation routines

Build repeatable clean-down and verification steps around the actual product mix.

03Maintenance pathway

Document service points, spares and escalation before the system leaves the shop.

04Local handover

Train operators and supervisors against the configured equipment—not a generic manual.

Day One Connected

Every Day One unit stays within reach.

Local control. Crystal Creek expertise, anywhere.

The local team keeps full control of daily production. At the same time, approved system health reaches experienced Crystal Creek engineers—so a rising milk temperature, refrigeration fault or failing pump can be understood before guesswork creates a larger problem.

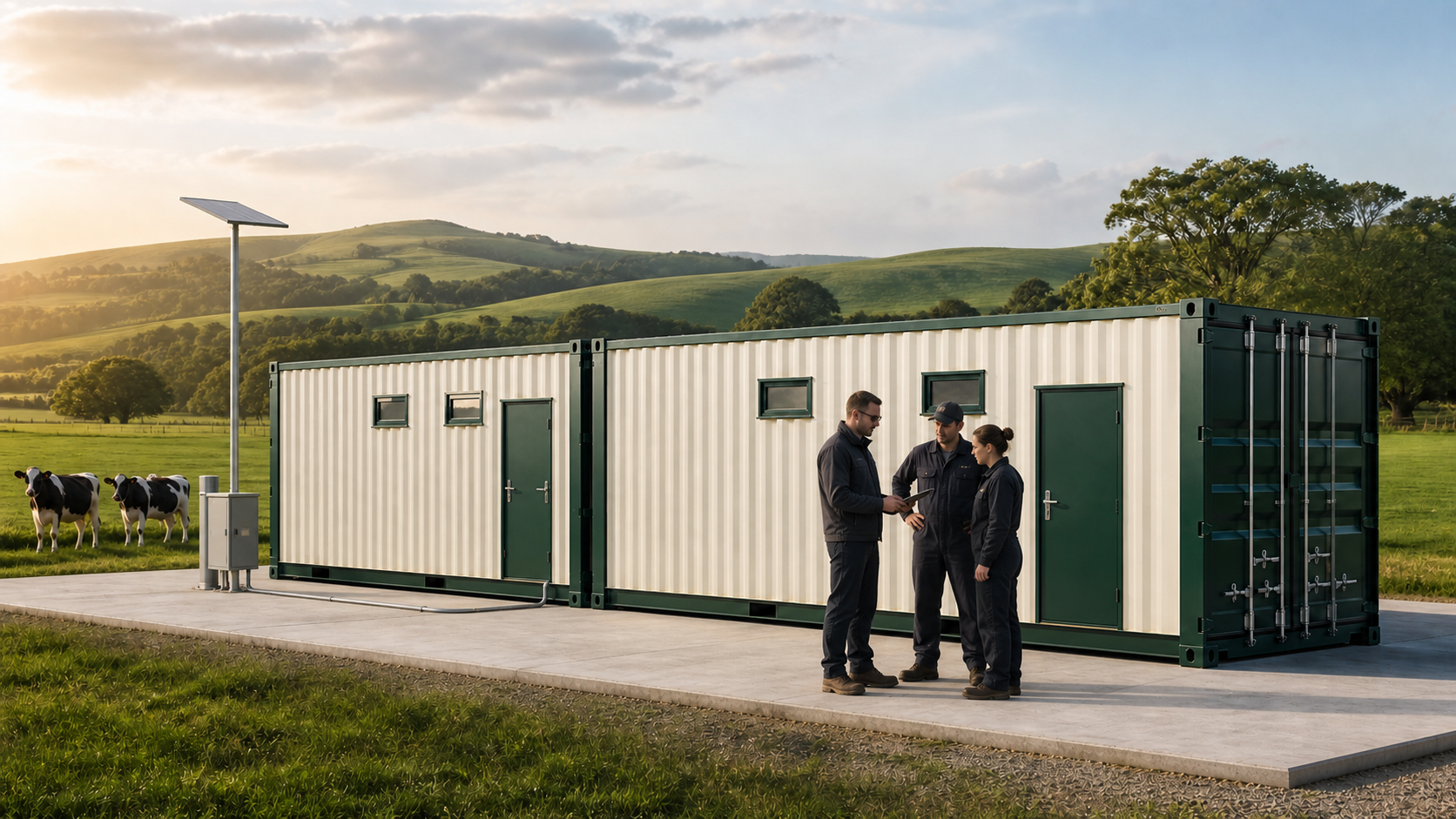

Two standard-height Day One Dairy modules at a prepared site with local operators, a Crystal Creek engineer, a pole-mounted satellite terminal and a protected communications cabinet Preferred satellite pathProfessionally mounted with protected power and cabling Industrial gatewayControllers are never exposed directly to the internet
Starlink availability, service plans and local approvals vary by country.
01See the whole process

Temperatures, pressures, flows, levels, current, doors, leaks, alarms and equipment state in one labelled view.

02Diagnose with experience

Crystal Creek technicians can inspect the sequence and history behind a fault—not just react to a single alarm.

03Reduce operator stress

Local teams can ask for informed help without handing the process over to trial-and-error.

04Avoid unnecessary travel

Remote evidence helps decide whether the answer is a reset, a part, a local task or an on-site visit.

05Keep working offline

The PLC, HMI, manual controls and safety systems remain functional without internet; the gateway buffers about 30 days.

One labelled operating picture

From milk intake to secure engineering support.

The installed point schedule is completed after controller, sensor, cybersecurity and hazard review for the receiving site.

Cutaway of Day One Milk and Creamery with labelled milk intake, dairy process, PLC and HMI, connected sensors, industrial gateway, CIP, creamery process, refrigeration, power and water utilities Dairy Creamery 01 Milk intake 02 Dairy process 03 Local PLC + HMI 04 Connected sensors 05 Industrial gateway 06 CIP + washdown 07 Creamery process 08 Refrigeration 09 Power 10 Water + utilities
  1. 01
    Milk intakeFlow, temperature, pressure and quality-state signals
  2. 02
    Dairy processPasteurization, transfer, tanks and equipment states
  3. 03
    Local PLC + HMIThe authoritative controller and operator interface
  4. 04
    Connected sensorsLevels, leaks, doors, motor current and alarms
  5. 05
    Industrial gatewayIsolated, outbound-only encrypted communication
  6. 06
    CIP + washdownCleaning sequence, temperatures, flow and completion evidence
  7. 07
    Creamery processProduct vessels, pumps, filling and cold-chain state
  8. 08
    RefrigerationMilk temperature, suction/discharge conditions and compressor state
  9. 09
    PowerSupply health, protection state and selected load conditions
  10. 10
    Water + utilitiesSupply, treatment, pressure and site utility status

Secure by design

Local operation first. A tightly controlled path outward.

  1. 01Sensors + equipmentLabelled process points report locally.
  2. 02PLC + HMILocal logic, interlocks and operators remain authoritative.
  3. 03Industrial gatewayIsolated collection, validation and offline buffering.
  4. 04Starlink or approved WANOutbound-only encrypted connection.
  5. 05Secure cloud servicesTelemetry, alarms, command queue and permanent audit record.
  6. 06Crystal Creek engineerFleet visibility and approved, accountable action.

Remote commands are signed, expire quickly and pass identity, freshness, range, equipment-state and local-interlock checks at the gateway before execution. Where supported, certificate-secured OPC UA connects the local controller and gateway.

Remote authority with a hard edge

Remote commands never bypass local safety.

Authorized Crystal Creek engineers can operate only the process functions approved during engineering. The local PLC decides whether every command is safe to execute.

Approved remote actions
  • Reset allow-listed, non-safety faults
  • Run bounded diagnostic tests
  • Switch to designated redundant equipment
  • Operate approved pumps, fans or compressors
  • Change setpoints only within engineered limits
Monitor only · always local
  • Emergency stops and safety relays
  • Animal gates and cattle-management hardware
  • Folding roof wings and structural mechanisms
  • Protective cut-outs and physical interlocks
  • PLC program changes or safety-logic bypasses

Included in every new system

Connected from factory testing through the first operating year.

Connected Operations is a mandatory engineered package—not a consumer add-on. It includes integration, gateway and network equipment, controls work, factory testing, commissioning and the first 12 months of connected support.

Ongoing support

Connected Support membership

Stay within reach

Continue proactive review and remote engineering support after the initial operating year. Scope, response window and included support are defined in the service agreement.

Discuss connected support ↗
Support when requested

On-demand engineering

Bring in experience

Request remote diagnostic help when a specific operating question or fault needs Crystal Creek experience. Availability and response are confirmed when support is requested.

Ask about on-demand support ↗

Connectivity: Starlink is the preferred deployment connection where legally available. Day One Connected includes mounting, protected power/cabling, secure integration and commissioning; the local partner owns the business account and subscription.

Book a project call Review Starlink service terms

Built here. Working there.

Arrive prepared. Place. Connect. Commission.

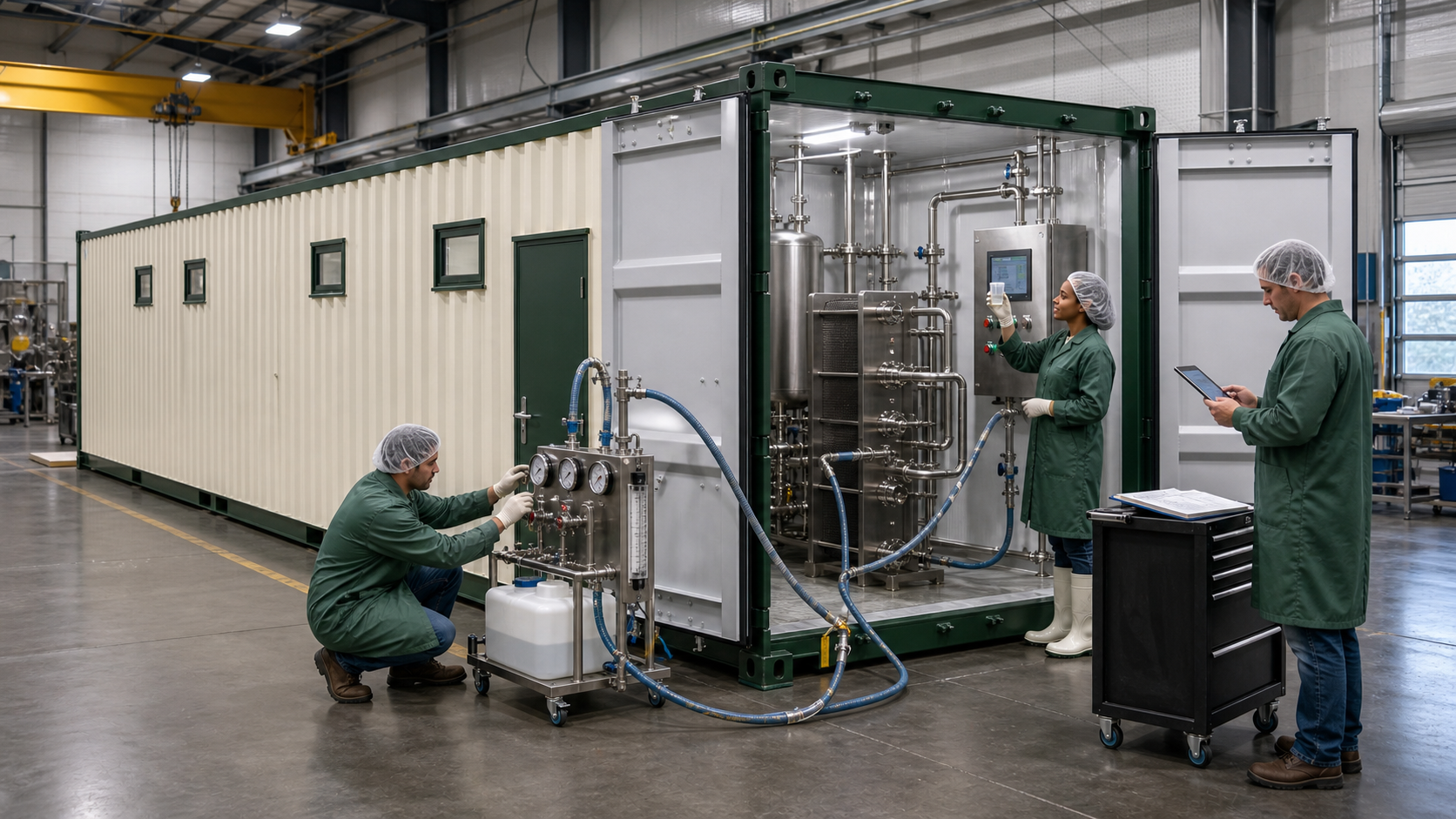

Day One Dairy shifts work out of the field and into a controlled build environment. The modules are configured, fitted and tested before dispatch. When the receiving site is genuinely ready, the target is commissioning in one day.

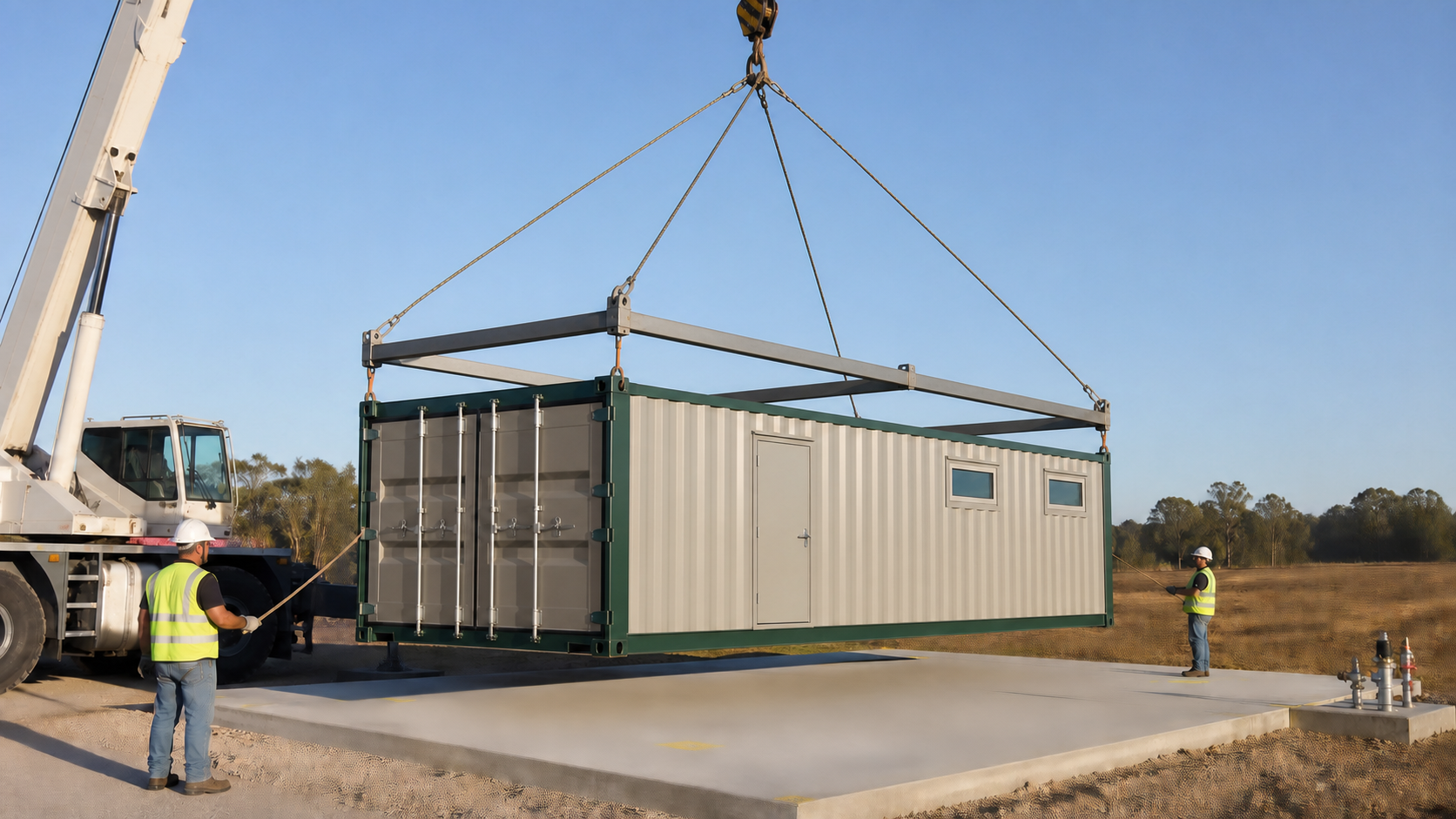

Standard-height 40-foot Day One Dairy production module being lowered level onto a prepared utility pad
DAY 01Target site commissioning*
01

Before shipment

Prepare the site

Access, pad, lifting plan, power, water, drainage, local approvals and operator availability.

02

Arrival

Place the modules

Rig and set Dairy and Creamery in the engineered orientation on the prepared foundation.

03

Connection

Make utilities live

Connect approved power, potable water, drainage, refrigeration interfaces and data as configured.

04

Commissioning

Verify and hand over

Run checks, sanitation verification, operator orientation and the configured startup protocol.

*One-day target, not a blanket guarantee.

Site readiness, customs, access, utilities, local inspection, weather and final configuration can change commissioning time.

The site-ready standard

The fastest field day starts months earlier.

One-day commissioning is earned through disciplined preparation. Day One Dairy aligns the receiving team, civil works, utilities and approvals while the modules are being built.

Request the site-readiness brief
A

Physical access

Verified route, turning radius, lifting clearance, crane setup and security.

B

Civil works

Engineered pad, drainage route, elevations and module fixing points.

C

Utilities

Approved electrical service, potable water, wastewater and backup plan.

D

People + approvals

Named operators, local technical partner, inspection pathway and startup authority.

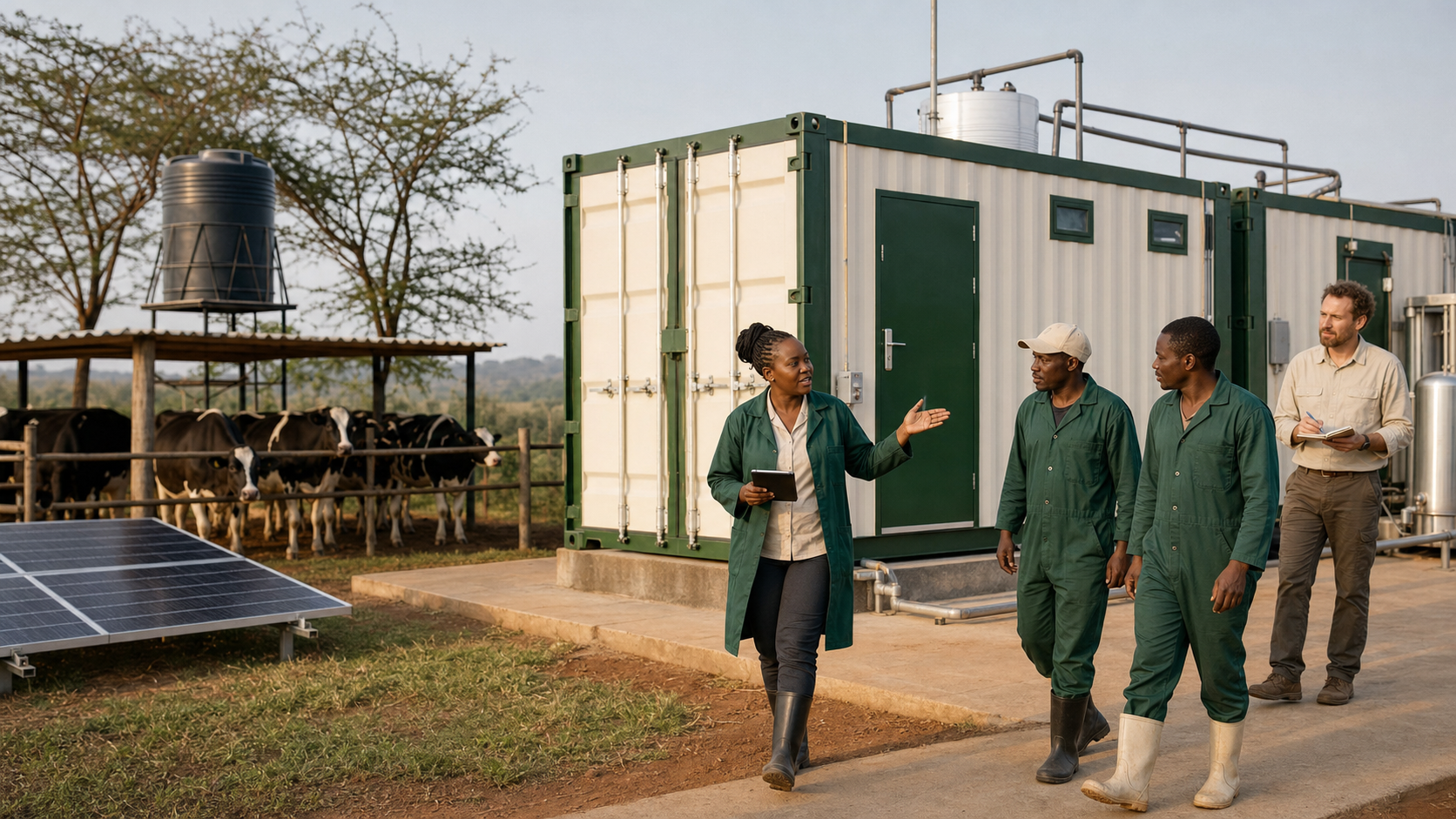

For NGOs and food-security partners

Fund an asset.
Build an operating system.

The strongest deployment is locally led from the beginning. Day One Dairy’s program framework connects equipment, people, routines, maintenance, governance and measurement around one production platform.

The ownership loop

  1. 01Co-designLocal partner, operators and market define the brief.
  2. 02ConfigureEquipment, utilities and products fit that operating reality.
  3. 03TransferTrain the people who will run, supervise and maintain it.
  4. 04MeasureTrack uptime, throughput, skills and locally retained value.

Local brief Working system Local capability

01

Capability transfer

Operator and supervisor training tied to the actual configured line.

02

Operational continuity

Cleaning, maintenance, spares and escalation planned before dispatch.

03

Evidence framework

Define throughput, uptime, training, product and local-value indicators before launch.

04

Dignified enterprise

Design for a locally owned operating model and viable route to market.

Country programs are developed with local partners and require feasibility, safeguarding, market and regulatory assessment.

The commercial lane

Wyoming farms can start with the same serious platform.

For homestead and small dairy operators, Day One Dairy offers a staged alternative to a conventional greenfield build: start with Day One Milk, add Day One Creamery when the product line and market are ready, and configure the site around the farm that already exists.

  • Retain more processing value near the farm
  • Build product capability in defined stages
  • Plan utilities, sanitation and approvals as one system
  • Use Crystal Creek’s dairy, refrigeration and fabrication experience

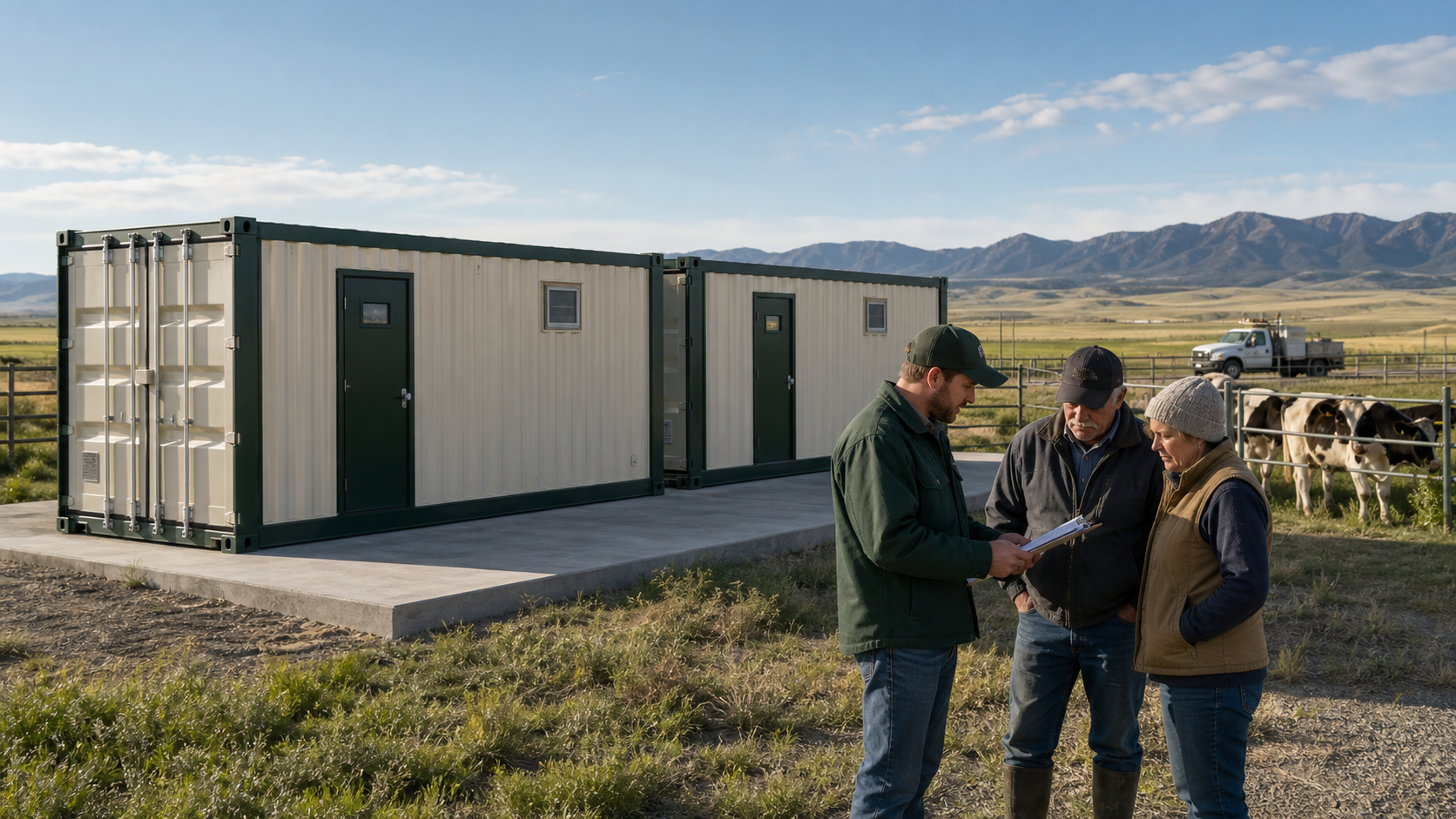

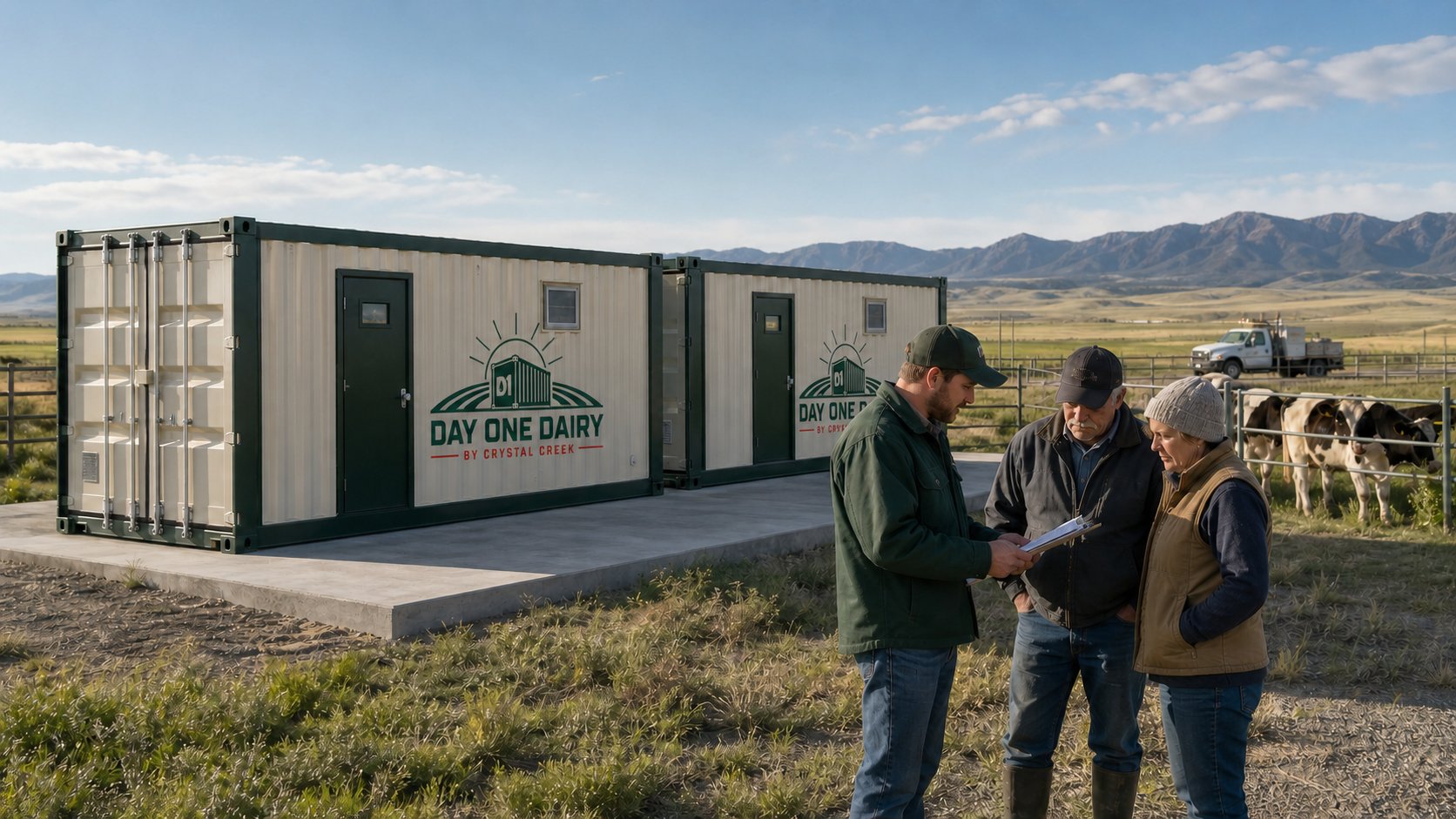

Wyoming farm operators reviewing commissioning with a Crystal Creek engineer
Wyoming commissioning

Day One field stories

A visual brief you can present in sixty seconds.

Use the controls to walk a board, donor or farm partner through the whole story. This branded briefing sequence is structured to become a full production film.

01 · Partner

Begin with local ownership.

Define who will operate, govern, maintain and grow the system before equipment is configured.

01 / 05

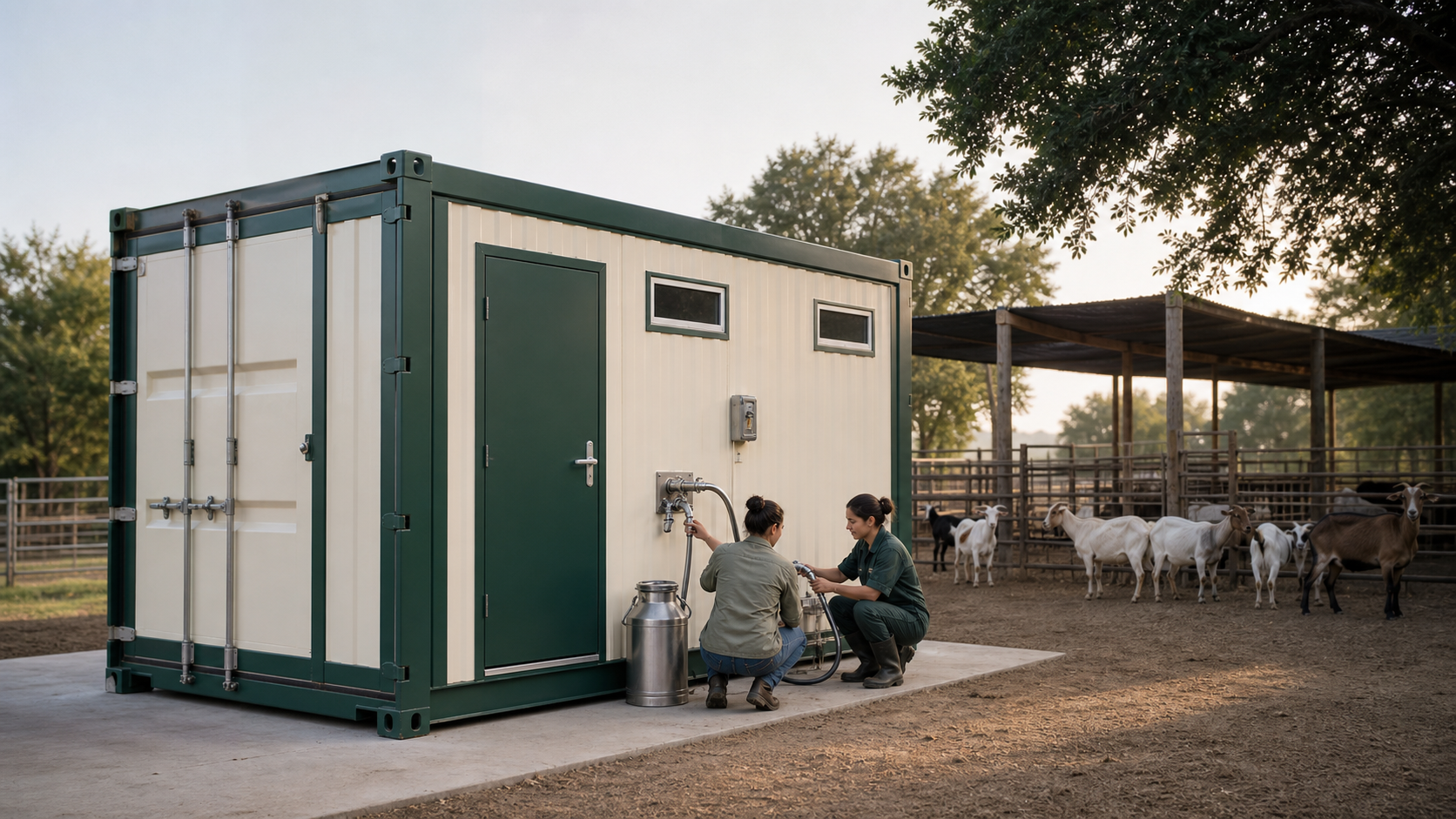

Compact Day One Goat production module with trained operators
Day One Goat · compact configuration

Product pathway 03

Day One Goat. Right-sized from the start.

Not every operation needs the full two-module starting point. Day One Goat is conceived as a compact production pathway for goat, sheep and other small-livestock programs—using the same principles of hygiene, maintainability and local operator confidence.

CompactSmaller module footprint
ConfigurableProducts and utilities by site
ExpandableConnect future capability

Product pathway 04 · portable cold chain

Day One Rapid.
Cold chain that moves.

A portable refrigerated or frozen cube can close the gap between milk collection, the processing site and local delivery—without asking every route to begin with a refrigerated truck.

01Farm collection

Place portable temperature-controlled capacity on a pickup or light commercial vehicle.

02Last-mile delivery

Move finished products through a controlled local cold-chain route.

03Contingency capacity

Add temporary chilled or frozen holding for events, peaks or service interruptions.

Specified per order: Crystal Creek confirms the selected cold-cube model, capacity, temperature range, power, local compliance, warranty and delivery requirements for the receiving operation.

Review the supplier platform

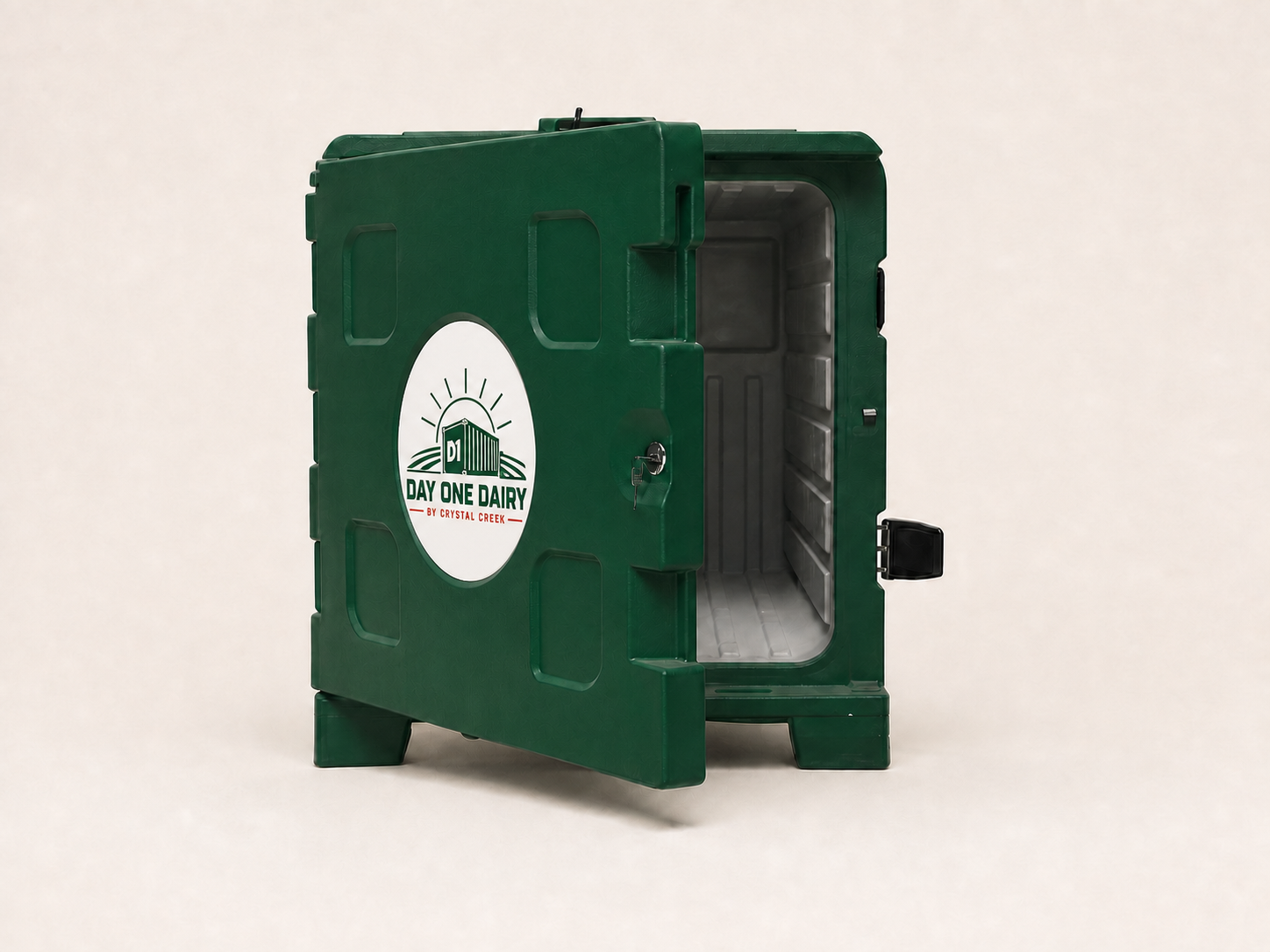

KingClima mobile cold cube available within the Day One Rapid cold-chain pathwayMobile cold-chain unit
Day One Rapid

Portable cold-chain equipment for collection, delivery and temporary temperature-controlled storage.

KingClima mobile cold-cube platform · final specification confirmed per order.

Target 12-week build

Twelve weeks is not a shortcut. It is work moved into the shop.

Day One Dairy is configured, structurally prepared, lined, fitted, wired, piped and tested before it enters the shipping lane. That controlled sequence is what makes a fast field commissioning target credible.

Lead time begins after scope lock and build release
01Weeks 01–02

Scope lock

Define the operating reality.

Lock the brief around what the receiving team can run, clean, maintain and sell or distribute.

  • Products, throughput and milk source
  • Operator roles and cleaning routines
  • Climate, utilities, site and approval route
Gate · configuration approved
02Weeks 03–04

Engineering release

Turn the brief into build information.

Coordinate the production flow, equipment, sanitary zones and every connection the site must provide.

  • General arrangement and process flow
  • Power, water, drainage and data loads
  • Foundation, lift and interface drawings
Gate · drawings released

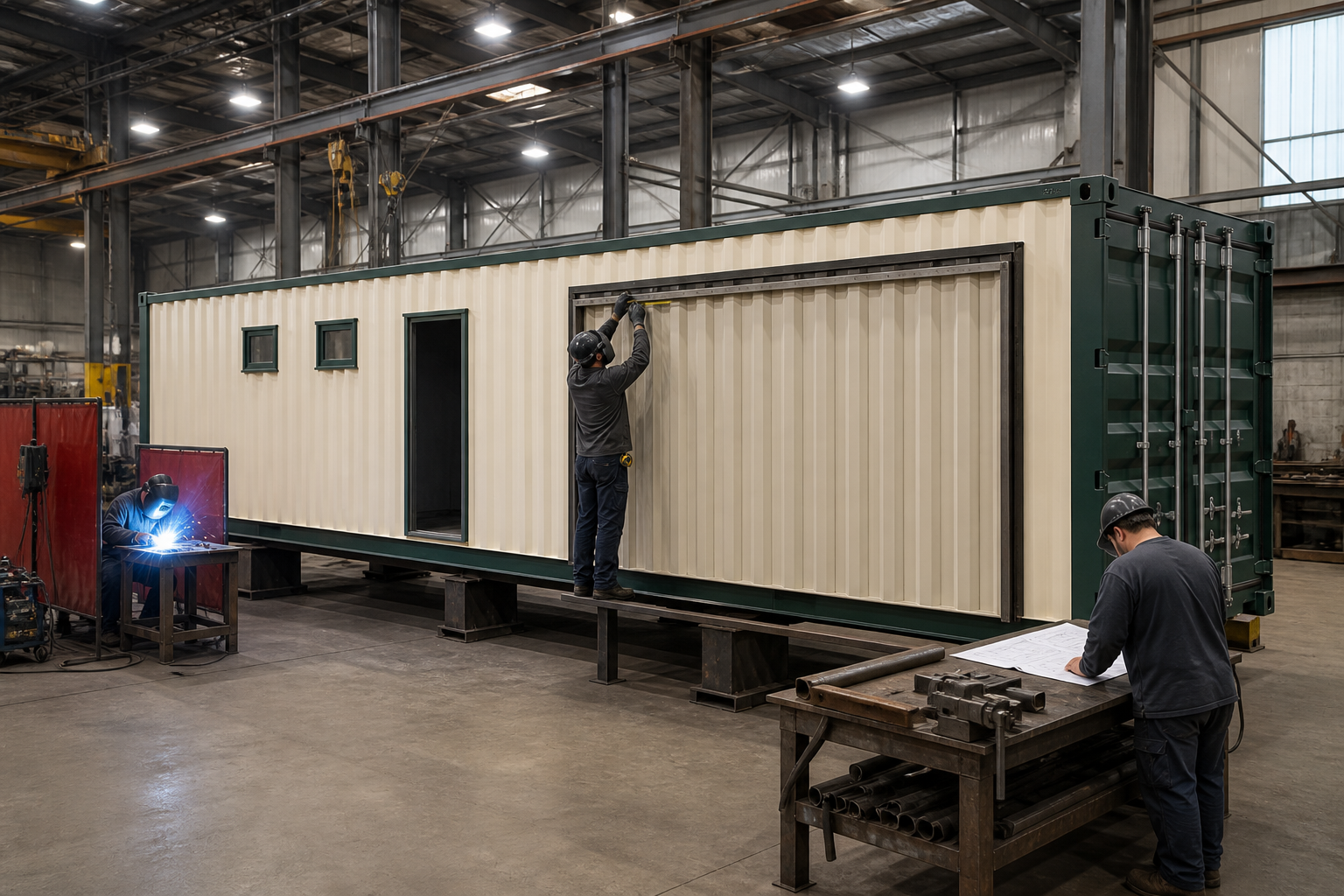

03Weeks 05–06

Shell + structure

Prepare a strong, sealed module.

Inspect the base container, reinforce every opening and establish the corrosion and weather boundary.

  • Door and high-window reinforcement
  • Sealed inner wall and service penetrations
  • Fold-wing hinge and frame trial fit
Gate · shell sign-off

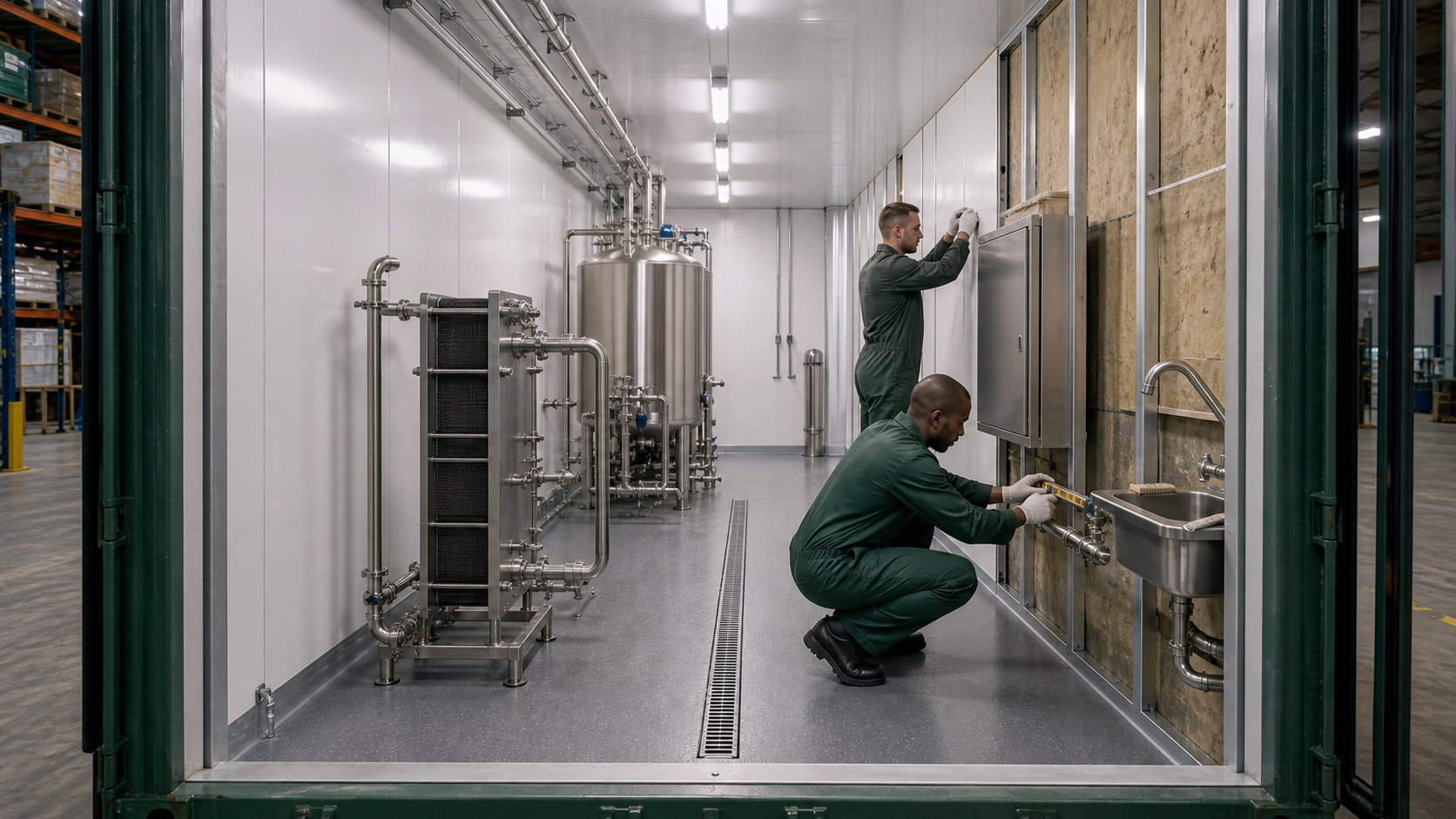

04Weeks 06–09

Systems fit-out

Install the food-production line.

Complete the hygienic envelope, then integrate process, refrigeration, electrical, controls and cleaning systems.

  • Panels, coves, nonslip floor and drains
  • Stainless equipment and sanitary piping
  • Chilling, power, controls and safety circuits
Gate · mechanical completion
05Week 10

Factory acceptance

Test the configured system.

Use controlled checks to verify what can be proven before product commissioning at the receiving site.

  • Pressure, leak and functional checks
  • Water run and control-sequence review
  • Punch list, documentation and spares check
Gate · FAT release
06Weeks 11–12

Dispatch + mobilisation

Close, protect and release.

Secure the modules for transport only after the shipping plan and receiving-site readiness gates agree.

  • Wing latches, weather seal and packing
  • Route, lifting and customs coordination
  • Site-ready review and commissioning plan
Gate · ready to ship

Planned handover package

Nothing should arrive as a mystery.

The final package follows the configured system and approval pathway; these are the core deliverables Day One Dairy is designed to organise.

Book a project call
  1. 01
    Configured drawing setLayout, interfaces, utility loads, lifting and foundation information.
  2. 02
    Equipment scheduleInstalled assets, service points and critical replacement parts.
  3. 03
    Factory test recordChecks performed, exceptions found and punch-list closeout.
  4. 04
    Operating documentsConfigured startup, shutdown, cleaning, verification and escalation routines.
  5. 05
    Training planNamed operator and supervisor roles tied to the actual installed line.
  6. 06
    Field-day checklistReadiness gates, connections, commissioning checks and handover authority.

The 12-week target depends on scope lock, equipment availability, engineering review, project approvals, shipping route and receiving-site readiness.

Compliance pathway

Designed to support approval—not pretend every jurisdiction is the same.

Food safety

Define hazards, sanitation, monitoring and records around the local product and process.

Site + utilities

Resolve power, water, wastewater, access, lifting and environmental requirements locally.

Equipment documentation

Maintain configured manuals, service points, spare strategy and equipment identification.

Operating authority

Work with the receiving partner and relevant local agencies to establish the approval route.

Planning your Day One Dairy

Clear answers before commitment.

Crystal Creek matches each production system to its herd, products, capacity, utilities, destination and operating team before finalizing the order.

What does “Day One Milk from $29,999” mean?+

It is the starting price for the base Day One Milk dairy module before destination-specific equipment, capacity, cattle-management hardware, site work, utilities, freight, taxes, commissioning and local approval requirements. Crystal Creek confirms the final scope and price after a project call.

Can the system really be commissioned in one day?+

That is the target for a fully pre-prepared site: the pad, access, power, water, drainage, lifting plan, local inspections and operators must all be ready before arrival. Site conditions, local approvals and final configuration can extend the schedule.

Is Day One Dairy a retail milk shop?+

No. The containers are production environments, not storefronts. Finished products move into an approved local distribution, institutional or retail channel outside the modules.

Does the fold-out milking bay open the Dairy container to the cows?+

No. Every cow remains outside beneath a deployed steel roof wing. A permanent insulated wall preserves the production boundary, and milk passes through dedicated sanitary connections. A compact bank can be studied with two or three separated stalls; final stall count, hinges, posts, anchors and weather loads require destination-specific engineering.

How are cows guided into the covered stalls?+

The system uses a gated single-file approach race along the canopy’s open edge. A crowd gate and anti-back gate guide one cow through a calm turn into the next stall, while a separate forward-release exit keeps outgoing cows away from incoming traffic. Final dimensions and handling details are matched to local cattle and animal-welfare requirements.

Who is behind Day One Dairy?+

Day One Dairy is engineered and delivered by Crystal Creek USA, a family business with dairy, refrigeration and fabrication experience. Crystal Creek remains the manufacturer and technical authority behind every configured system.

Is every deployment identical?+

The module logic is repeatable, but equipment, throughput, product mix, utilities, climate package and approval pathway are configured around the receiving site and local operator.

What does the target 12-week lead time include?+

The target covers configuration, engineering, fabrication, fit-out, testing and dispatch planning after the scope is locked. Custom equipment, approvals, shipping lanes and site readiness can change the final schedule.

What happens to Connected Operations when the internet goes down?+

Production keeps running locally. The PLC, HMI, manual controls, interlocks and safety systems do not depend on the cloud. The industrial gateway is designed to buffer about 30 days of operating data and synchronize it after a connection returns.

Who can operate equipment remotely?+

Only authorized Crystal Creek engineers can issue allow-listed commands, and every request requires a reason, a two-step confirmation and a permanent audit record. The gateway still checks identity, command freshness, engineered limits, equipment state and local interlocks before execution. Local operators see only their own deployment; Crystal Creek engineers can see the supported fleet.

Can remote access bypass a safety system?+

No. Emergency stops, safety relays, protective cut-outs, animal gates and folding roof mechanisms are monitor-only from the remote console. Remote commands cannot rewrite the PLC program or bypass local safety logic.

Is Starlink included everywhere?+

Starlink is the preferred connection where it is legally available and approved for the receiving site. Day One Connected includes the specified mount, protected power and cabling, secure network integration and commissioning. The local partner owns the appropriate business account and subscription; country availability, plans and approvals can change.

What is Day One Rapid?+

Day One Rapid provides portable cold-chain capacity for farm pickup, last-mile delivery and temporary chilled or frozen storage. Crystal Creek confirms the model, temperature range, power, local compliance and warranty for each order.

Is Crystal Creek staffing a 24/7 operations desk?+

No. The technical connection can remain available continuously, but staffed support response is during published Crystal Creek business hours. Response targets and any project-specific escalation coverage are defined in the support agreement.

Who owns Connected Operations data?+

Deployment owners retain ownership of their operating data. The final agreement defines authorized Crystal Creek access for support, retention periods, exports, security responsibilities and any required program reporting.

Start with a conversation

Book a project call—or call us now.

Tell us about the herd, site and product goals. Crystal Creek will confirm whether the $29,999 starting configuration fits and outline the next practical step.

503-751-1476Call Crystal Creek USA
office@crystalcreekusa.comEmail deployment inquiries
Independence, OregonFabrication + dairy experience
Call 503-751-1476

Prefer email? office@crystalcreekusa.com
